JSTL XML Tags x:choose, x:when, x:otherwise Examples

Details
Written by
Last Updated on 01 September 2019   |   Print  Email


In JSTL, the <x:choose>, <x:when>, <x:otherwise> tags are the XML counterparts of the core tags to perform conditional inclusion of data while parsing an XML document. The <x:choose> tag marks the beginning of a condition, <x:when> tag evaluates a condition and then includes its body if the condition evaluates to true. The <x:otherwise> tag includes its body when all of the conditions specified using <x:when> tags evaluates to false.

Note that <x:choose> and <x:otherwise> tags does not have any attributes.



JSTL <x:choose>, <x:when>, <x:otherwise> Syntax:

<x:choose>
 <x:when select="<string>">
     ...
 </x:when>
 <x:when select="<string>">
     ...
 </x:when>
     ...
     ...
 <x:otherwise>
     ...
 </x:otherwise>
</x:choose>



Attributes for <x:when>:

Name

Required

Description

select

True

Condition which determines whether or not the body content should be processed.



JSTL <x:choose>, <x:when>, <x:otherwise> Examples:

The following JSP code uses <x:choose>, <x:when>, <x:otherwise> tags to display citizens information along with their role and salary. The role and salary is shown in bold for the salary greater than 10,000.

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
    pageEncoding="ISO-8859-1"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c" %>
<%@ taglib uri="http://java.sun.com/jsp/jstl/xml" prefix="x"%>

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
 "http://www.w3.org/TR/html4/loose.dtd">
<html>
  <head>
    <meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
      <title>&lt;x:choose&gt; &lt;x:when&gt; &lt;x:otherwise&gt; Demo</title>
  </head>
  <body>
   <h1>&lt;x:choose&gt; &lt;x:when&gt; &lt;x:otherwise&gt; Demo</h1>
   <c:import
    url="http://localhost:8080/JSTL-Tag-Reference/tag-types/xml/citizens.xml"
    var="citizenXML"/>
   <x:parse var="doc" xml="${citizenXML}" />
   <table border="1">
    <x:forEach var="student" select="$doc/citizens/citizen">
        <tr>
        <x:choose>
            <x:when select="salary>10000">
              <td><x:out select="ssn" /></td>
              <td><x:out select="firstname" /></td>
              <td><x:out select="lastname" /></td>
              <td><b><x:out select="role" /></b></td>
              <td><b><x:out select="salary"/></b></td>
       </x:when>
       <x:otherwise>
              <td><x:out select="ssn" /></td>
              <td><x:out select="firstname" /></td>
              <td><x:out select="lastname" /></td>
              <td><x:out select="role" /></td>
              <td><x:out select="salary" /></td>
       </x:otherwise>
    </x:choose>
        </tr>
    </x:forEach>
    </table>
 </body>
</html>


XSLT Template (given for reference):

<?xml version="1.0"?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform"
    version="1.0">
    <xsl:output method="html" indent="yes" />
    <xsl:template match="/">
        <html>
            <body>
                <xsl:apply-templates />
            </body>
        </html>
    </xsl:template>
    <xsl:template match="citizens">
        <table border="1" width="200">
            <xsl:for-each select="citizen">
                <tr>
                    <td>
                        <xsl:value-of select="ssn" />
                    </td>
                    <td>

                        <xsl:value-of select="firstname" />

                    </td>
                    <td>
                        <xsl:value-of select="lastname" />
                    </td>
                    <td>
                        <xsl:value-of select="role" />
                    </td>
                    <td>
                        <xsl:value-of select="salary" />
                    </td>

                </tr>
            </xsl:for-each>
        </table>
    </xsl:template>
</xsl:stylesheet>


XML Document (given for reference):

<?xml version='1.0' encoding='UTF-8' standalone='no'?>
<citizens>
    <citizen>
        <ssn>Z345T</ssn>
        <firstname>Cheryl</firstname>
        <lastname>Johnson</lastname>
        <role>Manager</role>
        <salary>12000</salary>
    </citizen>
    <citizen>
        <ssn>Z446T</ssn>
        <firstname>John</firstname>
        <lastname>Smith</lastname>
        <role>Employee</role>
        <salary>1000</salary>
    </citizen>
    <citizen>
        <ssn>Z335T</ssn>
        <firstname>Justin</firstname>
        <lastname>Claire</lastname>
        <role>Senior Manager</role>
        <salary>14000</salary>
    </citizen>
    <citizen>
        <ssn>Z389T</ssn>
        <firstname>Clark</firstname>
        <lastname>Rick</lastname>
        <role>Employee</role>
        <salary>2000</salary>
    </citizen>
</citizens>

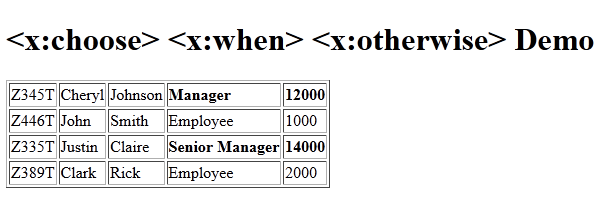

Output:

x-choose-when-otherwise



Recommended Usage of <x:choose>, <x:when>, <x:otherwise> tags:

We may need to perform conditional logic while parsing any XML data. These tags are useful in those scenarios where we can either display or process the data based on various conditions. The condition is specified as an XPath expression to the select attribute of the <x:when> tag.



XPath JAR download:



We may have to download the following JAR files and put them under WEB-INF/lib folder. These JAR files are necessary especially when we have XPath expressions.

Other JSTL XML Tags:

forEach  |  if  |  out  |  param  |  parse  |  set  |  transform
