Hibernate Many-to-Many Association Annotations Example

In this Hibernate tutorial, we are going to illustrate how to use JPA annotations to map a many-to-many association (both bidirectional and unidirectional) with a sample program developed using Eclipse and Maven. MySQL is used as the test database. Using annotations is an alternate approach (and preferred) to the XML descriptor one: Hibernate Many-to-Many XML Mapping Example.

Let’s recall about a typical many-to-many association:

Here, the multiplicity between the groups and users table is many-to-many, meaning that a group can have many users and vice-versa, a user can belong to many groups. A join table (users_groups) is required to connect the both sides.

To develop the sample program, we use the following pieces of software programs and libraries (you can use newer versions):

• Hibernate 4.2.7.SP1
• JDK 7
• Eclipse IDE 4.3 (Kepler)
• Maven 3
• MySQL Community Server 5.5.23
• MySQL Connector Java driver 5.1.26

Table of content:

1. Creating Database and Tables
2. Creating Maven-Eclipse Project
3. Using Annotations for Many-to-Many Association
4. Writing Hibernate Configuration File
5. Writing a Test Program

1. Creating Database and Tables

The following MySQL script is used to create a database called usersdb with three tables: groups, users and users_groups (join table):

create database usersdb;

use usersdb;

CREATE TABLE `users` (
  `user_id` int(11) NOT NULL AUTO_INCREMENT,
  `username` varchar(45) NOT NULL,
  `password` varchar(45) NOT NULL,
  `email` varchar(45) NOT NULL,
  PRIMARY KEY (`user_id`)
);


CREATE TABLE `groups` (
  `group_id` int(11) NOT NULL AUTO_INCREMENT,
  `name` varchar(45) NOT NULL,
  PRIMARY KEY (`group_id`)
);

CREATE TABLE `Users_Groups` (
  `user_id` int(11) NOT NULL,
  `group_id` int(11) NOT NULL,
  PRIMARY KEY (`user_id`,`group_id`),
  KEY `fk_user` (`user_id`),
  KEY `fk_group` (`group_id`),
  CONSTRAINT `fk_user` FOREIGN KEY (`user_id`) REFERENCES `users` (`user_id`),
  CONSTRAINT `fk_group` FOREIGN KEY (`group_id`) REFERENCES `groups` (`group_id`)
);

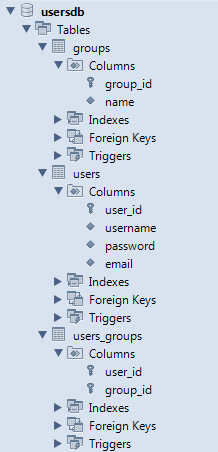

The usersdb database would have the following structure:

2. Creating Maven-Eclipse Project

In Eclipse IDE, create a Maven project named HibernateMany2ManyAnnotationsExample with the following structure:

This project consists of the following files:

• Model classes: Group.java and User.java
• Hibernate XML configuration file: hibernate.cfg.xml
• Test program: UsersManager.java
• Maven project: pom.xml

For the JAR files required for Hibernate and MySQL-Java library, update the pom.xml file with the following content.

<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
		http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>net.codejava.hibernate</groupId>
  <artifactId>HibernateMany2ManyAnnotationsExample</artifactId>
  <version>1.0</version>
  <name>HibernateMany2ManyAnnotationsExample</name>
  <description>A sample project that demonstrates using JPA annotations to map
   a many-to-many association in Hibernate</description>

  <dependencies>
  	<dependency>
  		<groupId>org.hibernate</groupId>
  		<artifactId>hibernate-core</artifactId>
  		<version>4.2.7.SP1</version>
  	</dependency>
  	<dependency>
  		<groupId>mysql</groupId>
  		<artifactId>mysql-connector-java</artifactId>
  		<version>5.1.26</version>
  	</dependency>
  </dependencies>

</project>

Here, we specify only two dependencies for Hibernate core and MySQL Connector/J, and the rest will be resolved automatically by Maven, such as Hibernate JPA and Hibernate Commons Annotations.

3. Using Annotations for Many-to-Many Association

To use JPA annotations to map the many-to-many association, create two model classes called Group.java and User.java with the following source code:

Filenet\codejava\hibernate\Group.java:

package net.codejava.hibernate;

import java.util.HashSet;
import java.util.Set;

import javax.persistence.CascadeType;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.JoinTable;
import javax.persistence.ManyToMany;
import javax.persistence.Table;

@Entity
@Table(name = "GROUPS")
public class Group {
	private long id;
	private String name;

	private Set<User> users = new HashSet<User>();

	public Group(String name) {
		this.name = name;
	}

	public void addUser(User user) {
		this.users.add(user);
	}

	@Id
	@GeneratedValue
	@Column(name = "GROUP_ID")
	public long getId() {
		return id;
	}

	@ManyToMany(cascade = CascadeType.ALL)
	@JoinTable(
			name = "USERS_GROUPS",
			joinColumns = @JoinColumn(name = "GROUP_ID"),
			inverseJoinColumns = @JoinColumn(name = "USER_ID")
	)
	public Set<User> getUsers() {
		return users;
	}

	// other getters and setters...
}

File net\codejava\hibernate\User.java:

package net.codejava.hibernate;

import java.util.HashSet;
import java.util.Set;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;
import javax.persistence.ManyToMany;
import javax.persistence.Table;

@Entity
@Table(name = "USERS")
public class User {
	private long id;
	private String username;
	private String password;
	private String email;

	private Set<Group> groups = new HashSet<Group>();

	public User(String username, String password, String email) {
		this.username = username;
		this.password = password;
		this.email = email;
	}

	public void addGroup(Group group) {
		this.groups.add(group);
	}

	@Id
	@GeneratedValue
	@Column(name = "USER_ID")
	public long getId() {
		return id;
	}

	@ManyToMany(mappedBy = "users")
	public Set<Group> getGroups() {
		return groups;
	}

	// other getters and setters...
}

We can see that both the Group and User classes have a collection (Set) of elements of each other, thus this association is bidirectional. Here, the Group is the owner side and the User is the other side.

To map this many-to-many association, these JPA annotations are used: @ManyToMany, @JoinTable and @JoinColumn, besides the basic annotations (@Entity, @Column, @Id, etc) . Let’s look at these annotations on each side closely:

• On the owner side (Group):

  private Set<User> users = new HashSet<User>();

  @ManyToMany(cascade = CascadeType.ALL)
  @JoinTable(
  		name = "USERS_GROUPS",
  		joinColumns = @JoinColumn(name = "GROUP_ID"),
  		inverseJoinColumns = @JoinColumn(name = "USER_ID")
  )
  public Set<User> getUsers() {
  	return users;
  }

  Here, the @JoinTable annotation is used to specify the details of the join table (table name and two join columns - using the @JoinColumn annotation). The cascade attribute of the @ManyToMany annotation is required, so that Hibernate will update the associated users when the group is updated.

• On the other side (User):

  private Set<Group> groups = new HashSet<Group>();

  @ManyToMany(mappedBy = "users")
  public Set<Group> getGroups() {
  	return groups;
  }

  This side is much simpler than the owner side, as we only need to specify the mappedBy attribute of the @ManyToMany annotation. That means this groups collection is mapped by the users collection on the owner side.

Implementing a Unidirectional Many-to-Many Association:

To make direction of the association becomes unidirectional, simply remove the groups collection from the User class:

@Entity
@Table(name = "USERS")
public class User {
	private long id;
	private String username;
	private String password;
	private String email;

	public User(String username, String password, String email) {
		this.username = username;
		this.password = password;
		this.email = email;
	}

	@Id
	@GeneratedValue
	@Column(name = "USER_ID")
	public long getId() {
		return id;
	}

	// other getters and setters...
}

I recommend you take this course to learn how many to many relationship is used in a real world project such as e-commerce shopping application.

4. Writing Hibernate Configuration File

Create Hibernate XML configuration file (hibernate.cfg.xml) under the classpath with the following content:

<?xml version='1.0' encoding='utf-8'?>
<!DOCTYPE hibernate-configuration PUBLIC
        "-//Hibernate/Hibernate Configuration DTD 3.0//EN"
        "http://www.hibernate.org/dtd/hibernate-configuration-3.0.dtd">
<hibernate-configuration>
  <session-factory>
    <!-- Database connection settings -->
    <property name="connection.driver_class">com.mysql.jdbc.Driver</property>
    <property name="connection.url">jdbc:mysql://localhost:3306/usersdb</property>
    <property name="connection.username">root</property>
    <property name="connection.password">secret</property>
    <property name="dialect">org.hibernate.dialect.MySQLDialect</property>
    <property name="show_sql">true</property>

    <mapping class="net.codejava.hibernate.User"/>
    <mapping class="net.codejava.hibernate.Group"/>

  </session-factory>
</hibernate-configuration>

Here, we specify database connection settings and the mapping classes to be loaded.

5. Writing a Test Program

So far we have done the association mapping part. To know if the mapping works as expected, let’s write a small program to insert some sample data with the following code (UsersManager.java):

package net.codejava.hibernate;

import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.hibernate.cfg.Configuration;
import org.hibernate.service.ServiceRegistry;
import org.hibernate.service.ServiceRegistryBuilder;

/**
 * A program that demonstrates using JPA annotations to map
 * a bidirectional many-to-many association in Hibernate framework.
 * @author www.codejava.net
 *
 */
public class UsersManager {

	public static void main(String[] args) {
		// loads configuration and mappings
		Configuration configuration = new Configuration().configure();
		ServiceRegistryBuilder registry = new ServiceRegistryBuilder();
		registry.applySettings(configuration.getProperties());
		ServiceRegistry serviceRegistry = registry.buildServiceRegistry();

		// builds a session factory from the service registry
		SessionFactory sessionFactory = configuration
				.buildSessionFactory(serviceRegistry);

		// obtains the session
		Session session = sessionFactory.openSession();
		session.beginTransaction();

		Group groupAdmin = new Group("Administrator Group");
		Group groupGuest = new Group("Guest Group");

		User user1 = new User("Tom", "tomcat", "tom@codejava.net");
		User user2 = new User("Mary", "mary", "mary@codejava.net");

		groupAdmin.addUser(user1);
		groupAdmin.addUser(user2);

		groupGuest.addUser(user1);

		user1.addGroup(groupAdmin);
		user2.addGroup(groupAdmin);
		user1.addGroup(groupGuest);

		session.save(groupAdmin);
		session.save(groupGuest);

		session.getTransaction().commit();
		session.close();
	}

}

Output of the program:

Hibernate: insert into GROUPS (name) values (?)
Hibernate: insert into USERS (email, password, username) values (?, ?, ?)
Hibernate: insert into USERS (email, password, username) values (?, ?, ?)
Hibernate: insert into GROUPS (name) values (?)
Hibernate: insert into USERS_GROUPS (GROUP_ID, USER_ID) values (?, ?)
Hibernate: insert into USERS_GROUPS (GROUP_ID, USER_ID) values (?, ?)
Hibernate: insert into USERS_GROUPS (GROUP_ID, USER_ID) values (?, ?)

Result in the groups table:

Result in the users table:

Result in the join table users_groups:

If you prefer learning via video, I recommend you to watch the following video::
