How to pass parameters from struts.xml to Struts action class

Details: Written by Nam Ha Minh; Last Updated on 31 July 2019 | Print Email

In this Struts tutorial, I will share with you how to read values of parameters configured in the Struts configuration file from within a Struts action class.

In Struts, the staticParams interceptor enables us configuring parameters for an action class in struts.xml configuration file, for example:

<action name="actionName" class="net.codejava.struts.MyAction">

	<param name="param1">Value 1</param>

	<param name="param2">Value 2</param>

	<!-- results names go here... -->
</action>

As we can see, each <param> element specifies key and value for a parameter - very straightforward. In the action class, there are two ways for reading these parameters: using JavaBean-style methods and using a Map object named params.

1. Reading parameters using JavaBean-style methods:

In this method, we have to declare properties whose names equal to key names of the parameters in struts.xml file. Suppose we specify parameters for an action as follows:

<action name="testMethodParam" class="net.codejava.struts.MethodParamAction">

	<param name="location">/UploadFiles</param>

	<result name="success">/MethodParamResult.jsp</result>
</action>

Then write the action class like this:

package net.codejava.struts;

import com.opensymphony.xwork2.ActionSupport;

public class MethodParamAction extends ActionSupport {
	private String location;

	public String getLocation() {
		return location;
	}

	public void setLocation(String location) {
		this.location = location;
	}

	public String execute() {
		System.out.println("location = " + location);
		return SUCCESS;
	}
}

And here is the result JSP page:

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
    pageEncoding="ISO-8859-1"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
	"http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Result</title>
</head>
<body>
	<center>
		<h3>Upload location: ${location}</h3>
	</center>
</body>
</html>

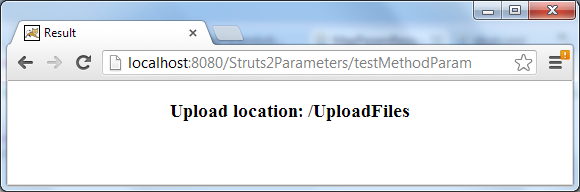

Output when running: http://localhost:8080/Struts2Parameters/testMethodParam

This method is suitable when we have just a few parameters for the action.

2. Reading parameters using a Map object

In this method, we have to do the following:

- Declare a property named params of type Map<String, String> - this map will hold all the parameters passed to the action class from the struts.xml file.
- Make the action class implementing the com.opensymphony.xwork2.config.entities.Parameterizable interface and implement its methods: setParams(), getParams() and addParam().

Let’s see an example. Suppose we have an action declared in struts.xml file as follows:

<action name="testMapParam" class="net.codejava.struts.MapParamAction">

	<param name="location">/UploadFiles</param>
	<param name="fileTypes">jpg,png,zip,doc,pdf</param>
	<param name="maxSize">10240</param>

	<result name="success">/MapParamResult.jsp</result>
</action>

It’s easy to spot the three parameters are: location, fileTypes and maxSize. Now we implement the action class as follows:

package net.codejava.struts;

import java.util.HashMap;
import java.util.Map;

import com.opensymphony.xwork2.ActionSupport;
import com.opensymphony.xwork2.config.entities.Parameterizable;

public class MapParamAction extends ActionSupport implements Parameterizable {

	private Map<String, String> params = new HashMap<String, String>();

	@Override
	public void addParam(String key, String value) {
		this.params.put(key, value);
	}

	@Override
	public Map<String, String> getParams() {
		return this.params;
	}

	@Override
	public void setParams(Map<String, String> params) {
		this.params = params;
	}

	public String execute() {
		System.out.println("param1 = " + this.params.get("param1"));
		System.out.println("param2 = " + this.params.get("param2"));
		System.out.println("param3 = " + this.params.get("param3"));

		return SUCCESS;
	}
}

As we can see, reading a parameter’s value is as simple as reading a map element:

String value = params.get("key");

Here is the result JSP page:

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
    pageEncoding="ISO-8859-1"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Map Param Result</title>
</head>
<body>
	<center>
		<h3>Location = ${params.location}</h3>
		<h3>File Types = ${params.fileTypes}</h3>
		<h3>Max Size = ${params.maxSize}</h3>
	</center>
</body>
</html>

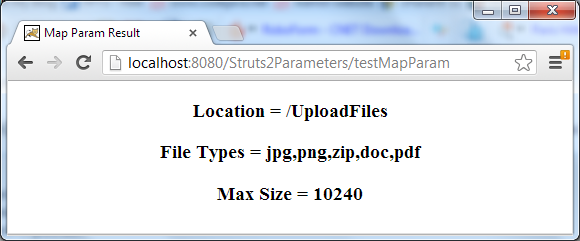

Output when running: http://localhost:8080/Struts2Parameters/testMapParam

test Map parameters

This method looks a bit more complex then the JavaBean-style one, however it would be useful in case we have many parameters, as reading parameters from a map is easier than having many getter and setter methods.

NOTE: The staticParams interceptor is already included in the Strut’s default stack, so if our package extends from the struts-default package, there is no need to include this interceptor explicitly.
